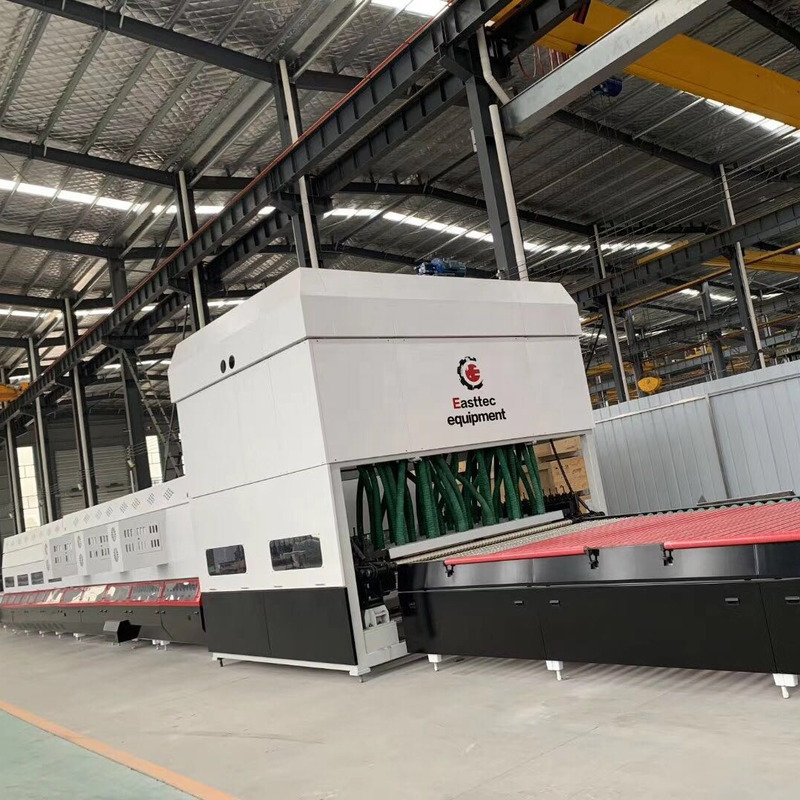

Architecture Flat & Bend Model Glass Tempering Furnace Shipping & Handling - AB1525-10

1.0 Sets
MOQ
Architecture Flat & Bend Model Glass Tempering Furnace Shipping & Handling - AB1525-10
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works , Other
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 16-18 load/h for 5mm glass
Voltage: 380V 50Hz or customized
Power: 250Kw
Dimension(L*W*H): 14800mm*2400mm *2800mm
Weight: 33000 kg
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 4-19mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New generation product 2022
Warranty of core components: 3 years
Core Components: Pressure vessel, Motor, Bearing, Gear, PLC, Gearbox
Product name: Flat and bend glass tempering furnace
Usage: Making tempered flat and bend & curved glass
Application: architecture, furniture, decoration
기본 정보
결제 및 배송 조건
Packaging Details: 3*40HQ,Standard package.
제품 설명
Product Description
Product Description
Automatic glass tempering furnace for architecture glass, doors and windows, shower room glass etc
Max Flat Glass Size:
1500mm*2500mm(4-19mm)
Min Flat Glass Size:
100mm*300mm(4-19mm)
Max bend Glass Size:
1500mm*1000mm(5-12mm)
Min bend glass size:
300mm*500mm
Radius of Curved glass:
 R≥500mm(4~5mm)
R≥1000mm(8～10mm)
R≥1200mm(10～12mm)
Dimension:
L×W×H 14800mm × 2400mm × 2800mm(Excluding air path and big blower room)
Direction for use
使用说明
Automatic flat glass tempering furnace mainly has seven sections:
1.Loading table
2.Heating furnace
3.Flat tempering section
4.Bend tempering section
5.Unloading table
6.Air path and blower
7.Control system
Put fine-edging and clean glass on the loading table, rubber coating rollers will transmit glass into heating furnace, glass is heated to be soft status by 600~700 degrees temperature, ceramic roller will transmit glass into flat tempering section, glass is tempered and cooling by air from blower via air path, steel roller will transmit glass to unloading table. tempering glass is finished.
Description of application effect
After tempering, the dangerous glass will become safe toughen glass with very good fragments after breaking, thus it can't harm person. Easttec has high requirements about the finished tempering glass.
1.Tempered glass fished rate 98%
2.Flatness 0.2%
3.Fragment meet all international standard
4.Provide super good optical effect.
Detailed Images
With special designed steady transmission system and the best advanced software. Easttec glass tempering furnace can provide long-term service to every user, providing continuous profits to every customer meanwhile.
1.Three-groove belt wheel link both at horizontal direction and vertical direction,ensure the transmission system runs steadily.
2.Standard thick square steel tube and steel plate, specific welding technology.
3.Four layer coating at furnace surface ensure long time life.
4.Automatic operation menu, save labor cost.
5.Mutiple language operation menu, easy operation.
6.Remote diagnosis system assit customer at any time on line, no worries about oversea after-sale service.

Size Information
Flat glass tempering furnace for big size glass
Model
SH-FA2436
SH-FA2442
SH-FA2450
SH-FA2460
SH-FA3050
Max glass size
2440x3660
2440x4200
2440x5000
2440x6000
3000x5000
Glass thickness
4~19

4~19
4~19
4~19
5~19
Model
SH-FA3060
SH-FA3080
SH-FA3390
Max glass size
3000x6000
3000x8000
3300x9000
Glass thickness
5~19
5~19
5~19
Related Products
Packing&Shipping
The furnace frame is packed by cystosepiment and anticollision film.
The important parts by wooden case.
After Sales Service
Remot diagnosis system & on-site instruction
Provide twelfe months free warantee and enough free spare parts,the whole life techology consultation and instructon.
24 hours remote diagnosis system help custmers.
Company Introduction
Luoyang Easttec Glass Automation Equipment Co., Ltd established in 2006. The mechanical engineer is engaged at glass tempering furnace industry from 1994.After fourteen years development, Luoyang Easttec can not only provide all kinds of architecture glass tempering furnace, but also provide car glass tempering furnace.
Our milestone:
Designed and manufactured the longest 12m long glass tempering furnace.
Designed and manufactured the first high-temperature blower convection furnace.
Designed and manufactured the first dule-heating chambers flat glass tempering furnace.

Our Services & Strength

Provide best advanced tecnology and professional furnace.
Provide good quality and steady running machine.
Provide professional installaton and commissioning.
Provide on time after-sale service.
FAQ
Automatic convection type flat glass tempering furnace can make flat tempered glass.
SH-FA2442 flat glass tempering furnace is suitable for tempering all low-e glass, architecture glass, doors and windows,furniture glass, shower room glass etc.

Contact information

Viktor Yang
whatsapp/wechat:+86 13623899217
www.easttecglass.com
Email:viktor@easttecglass.com
