Architectural Tempered Glass Furnace Machinery In Automotive And Building Industry

1.0 Sets
MOQ
Architectural Tempered Glass Furnace Machinery In Automotive And Building Industry
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Manufacturing Plant, Construction works , Glass Processing Industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 27-31 loads/h
Voltage: 380v
Power: Different by size
Dimension(L*W*H): Customized
Weight: kg
Warranty: 1 Year
Key Selling Points: High-accuracy
Glass Thickness: 5mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Application: Architecture, Furniture, Automobile, Household Appliance, Solar Energy
Heating Method: Jet Convection
Maximum Loading Dimension: According to your requirements
Minimum Loading Dimension: 150mm*350mm
Productivity (loads/h): 12-28
Product name: Tempered Glass Furnace Machines in Automotive and Building Industry
Glass thickness: 4-12mm
Usage: Make Glass Tempered
Type: Horizontal
Model: Variable Curvature Glass Tempering Machine
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: United States, UAE
인증: CE, 3C, ISO
After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
기본 정보
인증: CE, 3C, ISO
Model Number: Variable Curvature Glass Tempering Machine
결제 및 배송 조건
Packaging Details: Tempered Glass Furnace Machines in Automotive and Building Industry Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.Glass tempering furnace will be packed separately and it will be assembled toge
Supply Ability: 20 Set/Sets per Month temper glass manufacturing machine
제품 설명
Product Description
Tempered Glass Furnace Machines in Automotive and Building Industry
1. The innovative arc forming technique and the flexible bending mechanism ensure the flexibility and fast adoption of the curvature. The high precision bending mechanism ensures the accuracy and stability of arc forming.
2. There is no movement in the bending mechanism during the bending process, which ensures the glass accuracy and repeatability, reducing daily maintenance.
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
LD-D JetConvection Plus Variable Curvature Glass Tempering Furnaces
Model
Max. Loading

Dimensions (mm)
Min. Loading

Dimensions (mm)
Thickness(mm)
Min. Radius(mm)
Heating Power
Productivity (loads/h)
Installed Capacity(KVA)
LD-D1209/2J+
1200xARC900
300xARC300
4-8
250
240
25-28
500
LD-D1512 /2J+
1500xARC1200
300xARC300
4-8
250
320
25-28
630
LD-D1812/2
1800xARC1200
400xARC400
(4)5-8
(300)400
380
20-22
(800)630
LD-D2420/2J+
2400xARC2000
400xARC400
(5)6-12
(400)600
832
16-18
(1250)1000
LD-D3020/2J+
3000xARC2000
500xARC500
(6)8-15
(500)800
1050
12-14
(1250)1000
Detailed Images

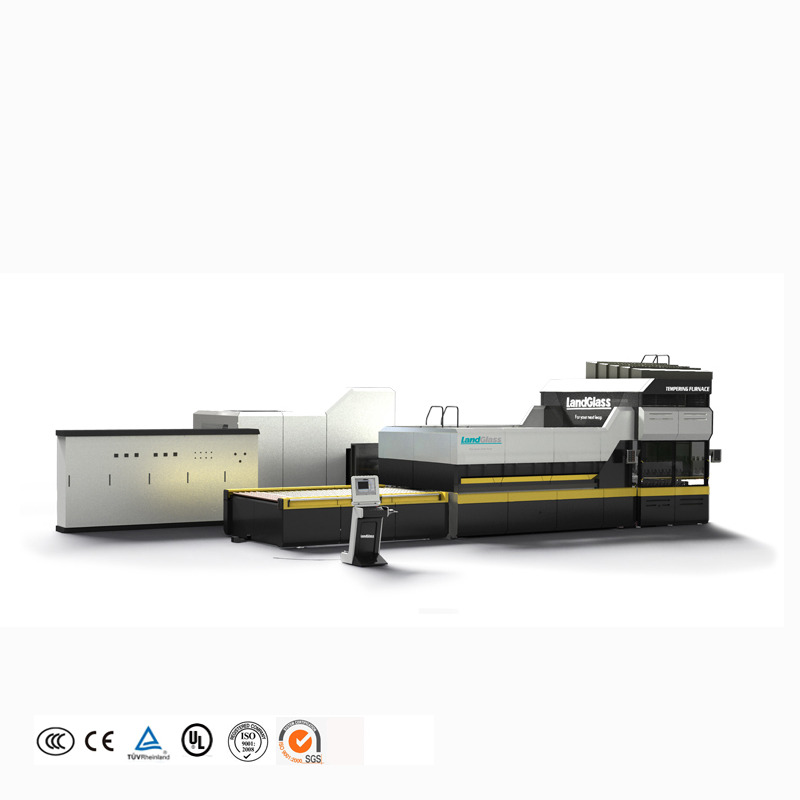

LD-D JetConvection PlusTM Variable Curvature Glass Tempering Furnaces are mainly used to bend and temper variable curvature glass. They are demanded to produce the glass for commercial refrigerators, food showcases, and high-class buses. The intelligent servo control system and flexible arching mechanism are applied to the furnace, which can process various kinds of high-quality variable curvature glasses through the innovative process and furnace layout. In addition, the furnace can process various kinds of coated glass and clear glass through the forced JetConvection heating technology.
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
If you are interested in our glass tempering furnace, please feel free to contact us.
