Architecture LandGlass Building Machinery Tempered Glass Machine Glass Making Small Size

1.0 Sets
MOQ
Architecture LandGlass Building Machinery Tempered Glass Machine Glass Making Small Size
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Manufacturing Plant, Construction works , Glass Processing Industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 15-18 loads/h
Voltage: 380v
Power: Depends on the model
Dimension(L*W*H): Different by size
Weight: kg
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 4-19mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2019
Warranty of core components: 1 Year
Core Components: PLC
Application: Architecture, Furniture, Automobile, Household Appliance, Solar Energy
Productivity (loads/h): 14-31
Heating Method: Electric Heating-Jet Convection
Installed Capacity: 800kVA, 1000KVA, 1250kVA
Max Loading Dimension: According to your requirements
Glass thickness: 4-19mm
ARC: 350-3000
Usage: Making Tempered Glass
Product name: Bi-directional automatic flat and bend glass tempering furnace
Tempering type: Flat and Bent Tempering Furnace
기본 정보
결제 및 배송 조건
Packaging Details: LandGlass Building glass making machinery tempered glass machine size small Package details: In containers. To be packed in standard export packing-suitable for long-distance shipping.Glass tempering furnace will be packed separately and it will be assembl
Supply Ability: 20 Set/Sets per Month tempered glass making machine
제품 설명
Product Description
LandGlass bidirection flat and bent architectural building clear low e glass tempering and bending machine
1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.
2. Hard-shaft bending roller technology bends glass lengthwise.
3. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.
4. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
Model
A2023B10/2J+
A2436B15/2J+
A2442B18/2J+
A2460B25J+
A2850B25J+
Flat Max Dimension
2000x3000
2440x3600
2440x4200
2440x6000
2800x5000
Singel Curvature Max Dimension
2000xARC1000
2440xARC1500
2000xARC1800
2440xARC2500
2800xARC2500
Flat Min Dimension
150x350
150x350
150x350
150x350
200x400
Single Curvature Min Dimension
200xARC350
300xARC400
300xARC400
300xARC500
500xARC600
Thickness
4-19
4-19
4-19
4-19
4-19
Productivity
27-32(5mm clear glass)
24-29(5mm 0.08Low-e glass)
27-32(5mm clear glass)
24-29(5mm 0.08Low-e glass)
27-32(5mm clear glass)
24-29(5mm 0.08Low-e glass)
14-16(5mm clear glass)
12-14(5mm 0.08Low-e glass)
14-16(5mm clear glass)
12-14(5mm 0.08Low-e glass)
Installed Capacity
800kVA
800kVA
1000kVA
1250kVA
1250kVA
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.

    Heating Mode:

    Forced convection heating on the top and bottom.Airstream and Superair are also optional.
Detailed Images
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.

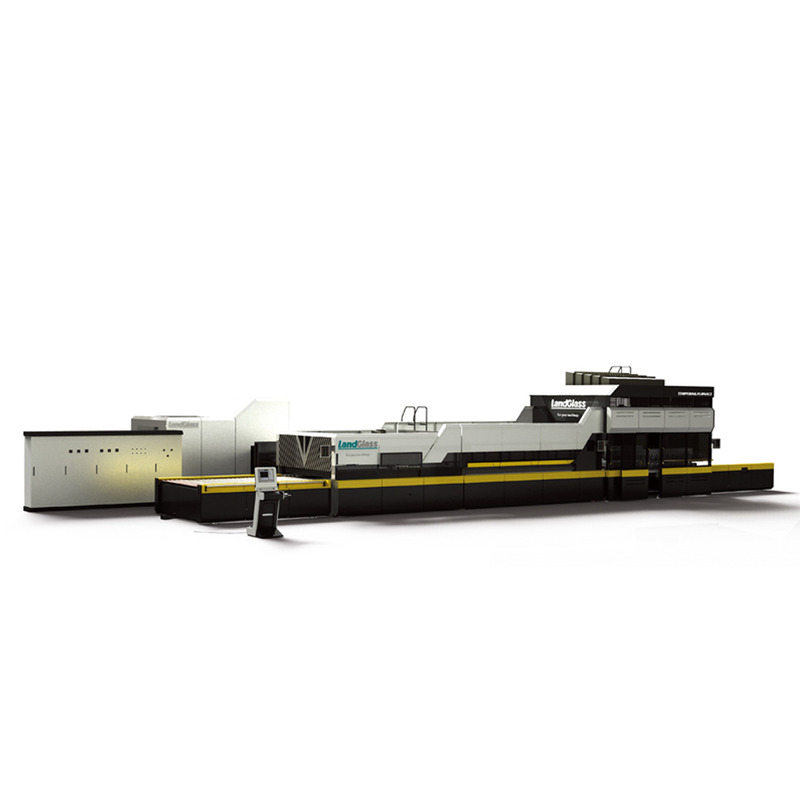

LD-AB JetConvection PlusTM Flat & Bent Bi-Directional Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
If you are interested in our glass tempering furnace, please feel free to contact us.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
