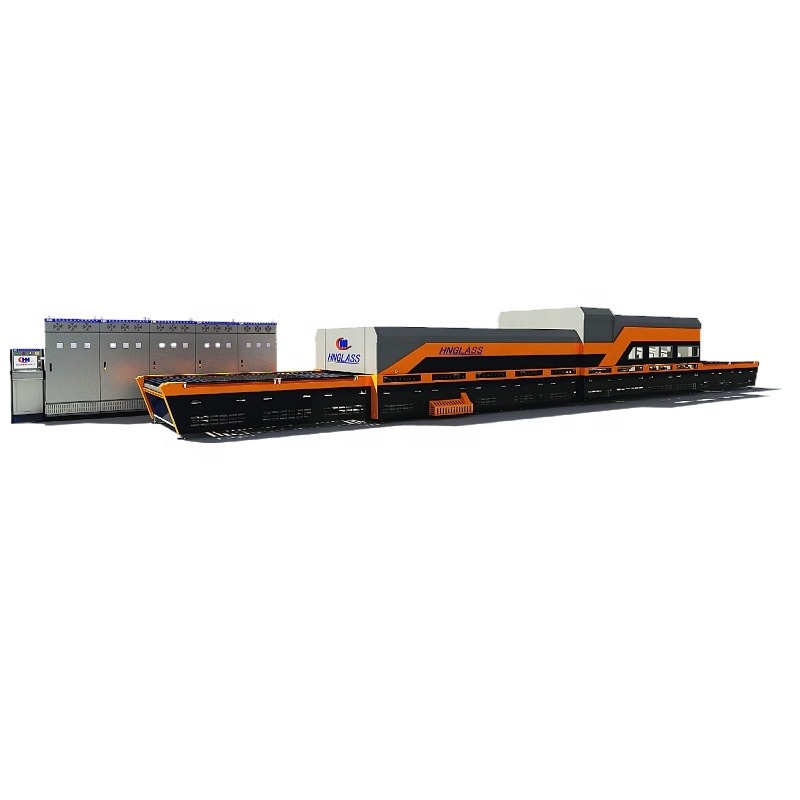

Factory 2436 Flat Glass Tempering Oven Full Convection

1.0 set
MOQ
Factory 2436 Flat Glass Tempering Oven Full Convection
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Manufacturing Plant, Construction works , glass processing industry
Showroom Location: Turkey, Saudi Arabia
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 18 Batch/h
Voltage: 220/380/440V
Power: Different by types
Dimension(L*W*H): Depending on the models
Weight: 24000 kg
Warranty: 2 years
Key Selling Points: Energy saving
Glass Thickness: 4-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: PLC, Engine
Power Supply: 500Kw
Heating method: Radiation Convection
Local Service Location: UAE
installation: Free installation commissioning and training
After sales Service Provided: engineer all year in Saudi Arab
인증: CE 3C ISO
기본 정보
인증: CE 3C ISO
결제 및 배송 조건
Packaging Details: Standard Packing
Supply Ability: 50 Set/Sets per Year
제품 설명
Product Description
Working Factory
More than 30,000 Square meter working factory. Capacity: more than 50set per year
Specification
Model
Max Glass Size
mm
Min Glass Size
mm
Glass Thickness
mm
Productivity
(Batch/hour)
Installation Power
KW
HNT-A1225
1250×2500
100×250
3-19
22
150
HNT-A1236
1250×3660
100×250
3-19
22
230
HNT-A1625
1600×2500
100×250
3-19
22
220
HNT-A1636
1600×3660
100×250
3-19
22
300
HNT-A2030
2000×3000
100×250
4-19
18
315
HNT-A2036
2000×3600
100×250
4-19
18
400
HNT-A2042
2000×4200
100×250
4-19
18
450
HNT-A2436
2440×3660
200×300
4-19
18
500
HNT-A2442
2440×4200
200×300
4-19
18
550
HNT-A2450
2440×5000
200×300
4-19
18
650
HNT-A2460
2440×6000
200×300
4-19
18
800
HNT-A2480
2440×8000
200×300
4-19
18
1000
HNT-A2860
2800×6000
200×350
5-19
15
900
HNT-A2880
2800×8000
200×350
5-19
15
1200
HNT-A28150
2800×15000
200×350
5-19
15
2200
HNT-A3380
3300×8000
200×500
6-19
14
1500
HNT-A33160
3300×16000
200×350
6-19
14
2800
HNT-A3580
3500×8000
200×500
6-19
14
1600
Company Profile
Glass Can Be Tempered: Building glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc
Two designs top blower can be designed to save customer's space

Features of the glass tempering furnace.

1.Stainless Steel Ceramic plates installed at the top of heating elements, which could ensure more even heating, avoid dust falling 2. Ceramic rollers driven by double belts, which can ensure better simultaneous and stable running. 3. Top quality insulating materials for whole heating oven 4. Heating elements use the gapless design (parallelogram shape), which could make the heating more even. This could improve the finished product rate and better product quality. 5. Using ceramic support for heating elements, which could avoid earth to avoid heater trouble

Supply Scope:

1. Loading table 2. Heating section
Force convection system as option ( Compressed air or Turbo Blower )
Vesuvius ceramic roller as option 3. Flat tempering & cooling section 4. Bent tempering & cooling section 5. Unloading table 6. Blower system with Frequency converter 7. Electrical & control system  (Siemens PLC, Computer, etc) 8. Technical documents
Bi-Directtion Flat & Bent Glass Tempering Furnace

Double Heating Chamber Glass Tempering Furnace

Continuous Glass Tempering Furnace

Convection Heating Glass Tempering Furnace

Soft Roller Length Bending Glass Tempering Furnace

Mould Bending/Car glass Tempering Furnace
