LandGlass Architectures Furniture Automobile Solar Powered Appliance Forced Convection Vidrio Templadora Maquina Doblado

1.0 Sets
MOQ
LandGlass Architectures Furniture Automobile Solar Powered Appliance Forced Convection Vidrio Templadora Maquina Doblado
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Manufacturing Plant, Construction works , Glass processing industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 27-94 loads/h
Voltage: 380v
Power: Depends on the models
Dimension(L*W*H): Different by sizes
Weight: kg
Warranty: 1 Year
Key Selling Points: High-accuracy
Glass Thickness: 5mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Product name: Luoyang LD-B1510/2 Bending Tempered Glass making machine Price
Tempering type: Bent tempering furnace
Heating method: Jet Convection
Max glass size: According to your Requirements
Min glass size: 150mm*350mm
Application range: Architectures furniture Automobile Household Appliance Solar Energy
Glass thickness: 3.2-12mm
Productivity (loads/h): 27-94
Installed capacity: 630/800/1250kVA
Type: Horizontal
기본 정보
결제 및 배송 조건
Packaging Details: LandGlass Forced Convection maquina templadora de vidrio doblado Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.Glass tempering furnace will be packed separately and it will be assembled together
Supply Ability: 20 Set/Sets per Month tempered glass making machine
제품 설명
Product Description

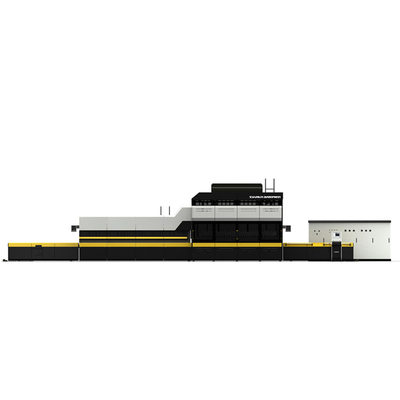

Luoyang LD-B1510/2 Bending Tempered Glass making machine Price

Pass-through tempering process – high quality and high output;

Asymmetric chiller design – precise shaping and smoother curvature;

Easy roller installation – for more convenient rapid replacement;

Computer-aided curvature adjuster – easy operation and accurate curvature;
Pressure display and alarm – quenching pressure monitoring to ensure tempering quality;
Scalable transition device – offering great convenience in furnace operation
Open type chiller – easy access for service work;

Automotive Sidelite, Fixed vent
Glass Can Be Tempered:
on-line and off-line Low-e (E=0.02) glass, ultra-clear glass, screen-printed glass, pattern glass, tinted glass, clear glass etc.
Model
B1208/4V
B1508/4V
B1208L24V
B1508L14V
Max. Dimension
1200 * ARC800
1500 * ARC800
1200 * ARC800
1500 * ARC800
Min. Dimension
100*ARC300
100*ARC300
100*ARC300
100*ARC300
Glass Thickness
3.2-5.0
3.2-5.0
3.2-5.0
3.2-5.0
Min. Radius
1150
1150
1150
1150
Capacity
75-80
75-80
450-460
270-280
Installed Capacity
900kVA
1100kVA
2200kVA
1200kVA
Detailed Images
1. Hard-shaft bending roller technology bends glass lengthwise.
2. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.
3. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
4. It can bend and temper small volumes of highly accurate single curvature glass for the automotive and household appliances market.
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
If you are interested in our glass tempering furnace, please feel free to contact us.
