Stores Low-E 5mm Clear Auto Energy-saving Flat And Bent Bi-direction Construction Glass Tempering Equipment Of Building Material

1 set
MOQ
Stores Low-E 5mm Clear Auto Energy-saving Flat And Bent Bi-direction Construction Glass Tempering Equipment Of Building Material
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works , glass processing industry
Showroom Location: Turkey, Saudi Arabia
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 18 Batch/h
Voltage: 220/380/440V
Power: Different by types, 450Kw
Dimension(L*W*H): Depending on the models
Weight: kg
Warranty: 2 years
Key Selling Points: Energy saving
Glass Thickness: 4-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: PLC
Production rate: 99%
Heating method: Radiation Convection
Local Service Location: UAE
installation: Free installation, commissioning and training
After sales Service Provided: engineer all year in Saudi Arab
인증: CE 3C ISO
기본 정보
인증: CE 3C ISO
결제 및 배송 조건
Packaging Details: Standard Packing
Supply Ability: 50 Set/Sets per Year
제품 설명
Product Description
Working Factory
More than 30,000 Square meter working factory. Capacity: more than 50set per year
Specification

Model
Max Glass Size
Min Glass Size
Glass Thickness
Install Power         (KW)
Flat Glass
Bent Glass
Flat Glass
Bent Glass
HNAB1208
---
1250×850
---
200×350
2.5-19
200
HNAB2010
---
2000×1000
---
200×350
2.85-19
250
HNAB2417
---
2440×1700
---
200×400
4-19
300
HNA1236B08
1250×3660
1250×850
100×250
200×350
2.5-19
400
HNA2025B08
2000×2500
2000×850
100×250
200×350
4-19
400
HNA2436B10
2440x3660
2000×1000
100×250
200×350
4-19
500
HNA2436B17
2440x3660
2440×1700
100×300
200×400
4-19
500
HNA2442B17
2440x4200
2440×1700
100×300
200×500
4-19
600
HNA2442B20
2440x4200
2440×2000
200×400
200×500
4-19
600
HNA2442B25
2440x4200
2440×2500
200×400
200×500
4-19
600
HNA2450B20
2440x5000
2440×2000
200x400
200x500
4-19
700
HNA2450B25
2440x5000
2440×2500
200x400
200x500
4-19
700
HNA2860B20
2800x6000
2800x2000
200x500
200x500
5-19
1000
HNA3380B20
3300x8000
3300x2000
200x600
200x500
6-19
1500
HNA33160B25
3300x16000
3300x2500
200x600
200x500
6-19
2800
Company Profile
Glass Can Be Tempered: Building glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc
Common Bending glass
Reverse bending glass
V type Bending glass
Length flexible bending glass
mould bending

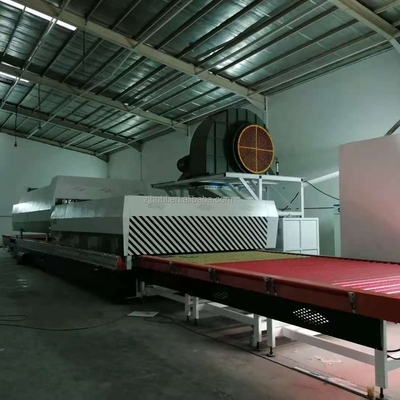

Features of the glass tempering furnace.

1.Stainless Steel Ceramic plates installed at the top of heating elements, which could ensure more even heating, avoid dust falling 2. Ceramic rollers driven by double belts, which can ensure better simultaneous and stable running. 3. Top quality insulating materials for whole heating oven 4. Heating elements use the gapless design (parallelogram shape), which could make the heating more even. This could improve the finished product rate and better product quality. 5. Using ceramic support for heating elements, which could avoid earth to avoid heater trouble

Supply Scope:

1. Loading table 2. Heating section
Force convection system as option ( Compressed air or Turbo Blower )
Vesuvius ceramic roller as option 3. Flat tempering & cooling section 4. Bent tempering & cooling section 5. Unloading table 6. Blower system with Frequency converter 7. Electrical & control system  (Siemens PLC, Computer, etc) 8. Technical documents
Flat Glass Tempering Furnace

Double Heating Chamber Glass Tempering Furnace

Continuous Glass Tempering Furnace

Convection Heating Glass Tempering Furnace

Soft Roller Length Bending Glass Tempering Furnace

Mould Bending/Car glass Tempering Furnace
