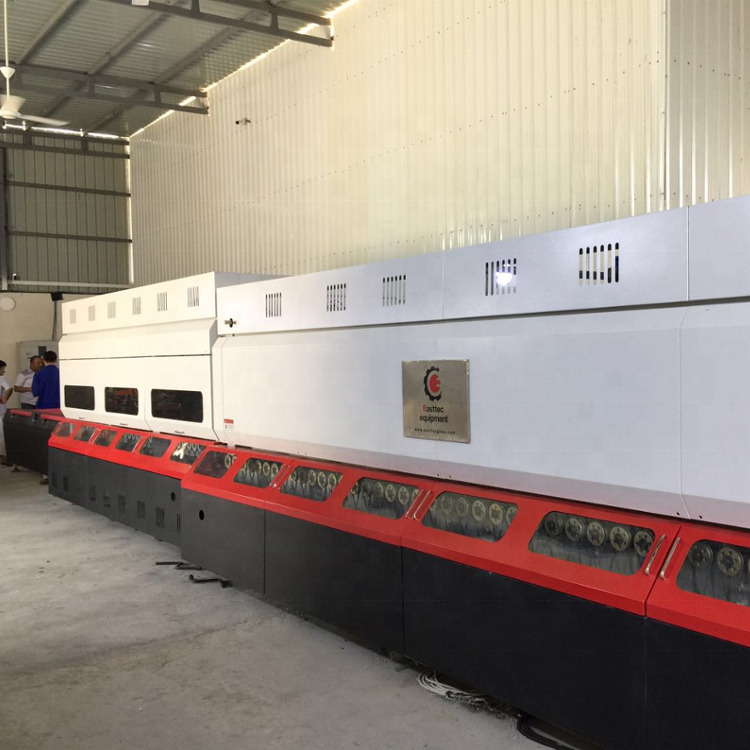

Glass tempering machine.
Temper glass making machine.
Toughened glass machinery.
Furnace model:SH-A2436
1. Glass size:
Max flat glass size : 2,440 mmx 3,660 mm
Min glass size : 100 x 300 mm
Glass thickness range : Tempering :5 - 19 mm for 4mm 2,440mmx 1,500mm
Furnace dimension(L x W x H ):
18000mm x3300mm(excluding the air path and big blower room) x2300mm
2. Finished product rate: over 5mm not less than 98%.
3. Suitable glass sorts:
Clear float glass
Reflective glass
Coated glasses
Patterned glass
Tinted glass
4.Power requirement: no less than 500KW
Zora Zhou
Whatsapp/wechat:+86 13613792540
Facebook/twitter:Zora Zhou/@easttecequipment
| Model | Max glass size | Min glass size | Glass thickness | Transformer |
| SH-A2436 | 2440*3660 | 100*300 | 4~19 | >560KW |
| SH-A2442 | 2440*4200 | 100*300 | 4~19 | >630KW |
| SH-A2450 | 2440*5000 | 100*300 | 4~19 | >800KW |
| SH-A2460 | 2440*6000 | 100*300 | 4~19 | >1000KW |
| SH-A2842 | 2800*4200 | 100*350 | 5~19 | >750KW |
| SH-A2480 | 2400*8000 | 100*300 | 4~19 | >1200KW |
| SH-A3050 | 3000*5000 | 100*350 | 5~19 | >930KW |
| SH-A3060 | 3000*6000 | 100*350 | 5~19 | >1100KW |
| SH-A3080 | 3000*8000 | 100*350 | 5~19 | >1500KW |
Note:
1) All above data is measured by millimeter.
2)Not all models are listed in this form for reason of space, please contact us for more details.
1.Adopt standard thick square steel tube and steel plate as the furnace frame, ensure more than 30 years life.
2.Special transmission design of three-groove belt wheel, ensure the furnace steadily running and easy maintenance.
3.Multiple language operation menu and automatic control system, ensure easy operation. English,Russian,Spanish language,Portuguene, Koren language optional.
4.Remote diagnosis system can assit and help abroad customer at any time on-line, no worries about after-sale service.
1.Professional glass tempering technology, since 1994.
2.European standard quality management.
3.Energy saving design helps customers save one thirds electricitity.
4.Automatic multiple language operation menu.
English, Spanish, Russian, Korean, Portuguese etc optional.
5.Special designed advanced software help customer make all thickness glass easily.
Maintainess easily. Novice master operation and maintenance within one week.
6.Technicians 24 hours online support.
Easttec glass tempering furnace has served more than 200 domestic customer and many abroad customer, for example Turkey,Russia,Iraq,Portugal,Peru, Mexico,Algeria,India, Cambodia etc.
Luoyang Easttec is the professional glass tempering furnace manufacturer with more than twenty years experience, since 1994.
Our main product is flat glass tempering furnace, bend tempering furnace, convection glass tempering furnace, double-heating chamber glass tempering furnace, continuous glass tempering furnace.
With best performence and on-time after sale service, Easttec sincerely looking forward to cooperate with customers all over the world.
