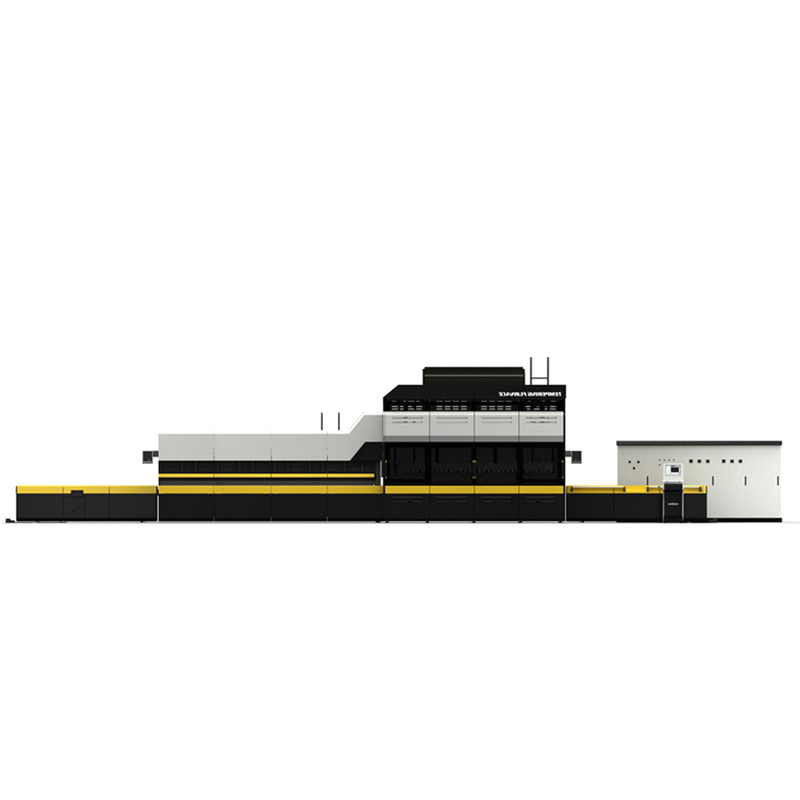

Architecture LandGlass Car Windshield Single Curvature JetConvection Tempering Glass Making Equipment

1.0 Sets
MOQ
Architecture LandGlass Car Windshield Single Curvature JetConvection Tempering Glass Making Equipment
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Manufacturing Plant, Construction works , Glass processing industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 75-280 loads/h
Voltage: 380v
Power: Different by models
Dimension(L*W*H): According to the requirements
Weight: kg
Warranty: 1 Year
Key Selling Points: german control
Glass Thickness: 4-19mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Tempering Type: Flat Glass Tempering
Max glass size: According to your requirement
Min. Glass size: 100mm*ARC300mm
Application: Architecture, Furniture, Automobile, Household Appliance, Solar Energy
Installed Power(KVA): 630/1000
Glass can be tempered: Low-E glass,clear glass,tinted glass,pattern ,screen printed glass
Heating method: JetConvection
Product name: JetConvection car mini bus automotive side glass making machine
Glass thickness: 4-19mm
Brand: LandGlass
기본 정보
결제 및 배송 조건
Packaging Details: LandGlass car windscreen single curvature JetConvection tempering glass making equipment Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.Glass tempering furnace will be packed separately and it wi
Supply Ability: 20 Set/Sets per Month equipment for tempering glass
제품 설명
Product Description
Precio competitivo coche maquinas para fabricar vidrio templado

Pass-through tempering process – high quality and high output;

Asymmetric chiller design – precise shaping and smoother curvature;

Easy roller installation – for more convenient rapid replacement;

Computer-aided curvature adjuster – easy operation and accurate curvature;
Pressure display and alarm – quenching pressure monitoring to ensure tempering quality;
Scalable transition device – offering great convenience in furnace operation
Open type chiller – easy access for service work;

Automotive Sidelite, Fixed vent
Glass Can Be Tempered:
on-line and off-line Low-e (E=0.02) glass, ultra-clear glass, screen-printed glass, pattern glass, tinted glass, clear glass etc.
Model
B1208/4V
B1508/4V
B1208L24V
B1508L14V
Max. Dimension
1200 * ARC800
1500 * ARC800
1200 * ARC800
1500 * ARC800
Min. Dimension
100*ARC300
100*ARC300
100*ARC300
100*ARC300
Glass Thickness
3.2-5.0
3.2-5.0
3.2-5.0
3.2-5.0
Min. Radius
1150
1150
1150
1150
Capacity
75-80
75-80
450-460
270-280
Installed Capacity
900kVA
1100kVA
2200kVA
1200kVA
Detailed Images
1. Hard-shaft bending roller technology bends glass lengthwise.
2. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.
3. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
4. It can bend and temper small volumes of highly accurate single curvature glass for the automotive and household appliances market.
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
If you are interested in our glass tempering furnace, please feel free to contact us.
