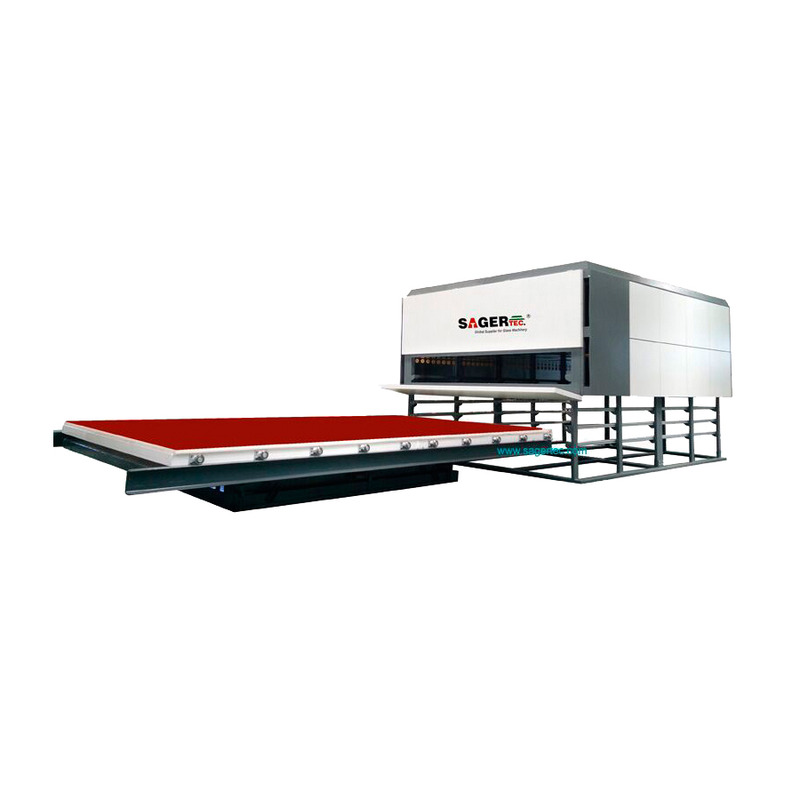

Two Doors Glass Laminating Machine
Description &Technical Reference
SG-3000-2DD EVA glass laminating machine is a professional equipment to produce laminated glass without autoclave.
It is able to produce various laminated glass thanks to the advantages of this machine and specific film. You can insert silk,
paper, plastic film, metal mesh, fabrics, PDLC film SGP film into normal and tempered glass sheets by using the EVA
film, in order to produce decorative and functional laminated glass, bending glass in one step or muti-step processing.
|
|
Max.glass size(mm) |
Vacuum bag(set) |
Max.glass thickness(mm) |
Heating time(minute) |
Power (KW) |
Diamention (mm) |
|
SG-3000-1DD |
1800*3000 |
2 |
50 |
20 |
36 |
7260*3630*1490 |
|
SG-3000-1SD |
1800*3000 |
1 |
50 |
20 |
36 |
5445*3630*1490 |
|
SG-3000-2DD |
2000*3200 |
4 |
50 |
30 |
72 |
8414*2810*2150 |
|
SG-3000-2SD |
2000*3200 |
2 |
50 |
30 |
72 |
8414*2810*2150 |
|
SG-3000-3SD |
3700*2500 |
3 |
50 |
90 |
35 |
9600*4000*2260 |
|
SG-3000-4SD |
3700*2500 |
4 |
50 |
90 |
36 |
9600*4000*2260 |
|
SG-3000-5SD |
3700*2500 |
5 |
50 |
90 |
36 |
9600*4000*2260 |
Layout
Application
Material Insert: Metal mesh, paper, LED, fabrics, silk , PDLC,SGP, TPU,EN or other film etc.
Machine details
|
|
Easy operation for new user
1.Siemens PLC control and digital display for option 2.Most of Schneider electrics 3.Equip with smart program, easy operation for new user. 4.Special design with two steps processing, 99%Yield |
|
Fast and stable vacuum degree
1.Patent technology,Vacuum provides stability The vacuum pump consists of four parts, vacuum pump, buffer tank, air filter and oil-water separator.
2.Buffer tank function even suddenly power off, it can not effect the vacuum.
|
|
|
|
Two waorking station saving time
Double doors can be controlled pneumatically by touch screen. Single and double working section can be optional. |
Machine processing
Certification
After sale service
We will provide all spare parts needed for maintenance of the equipments.
Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Company Profile
Sagertec. Established in 2008, a professional manufacturer and exporter that is concerned with design, development and production of glass processing machinery.
Main Products including: PVB glass laminating machine, EVA glass lamination furnace, PVB/EVA glass lamination line, glass edge polishing machine, glass washing machine , glass drilling machine etc.
